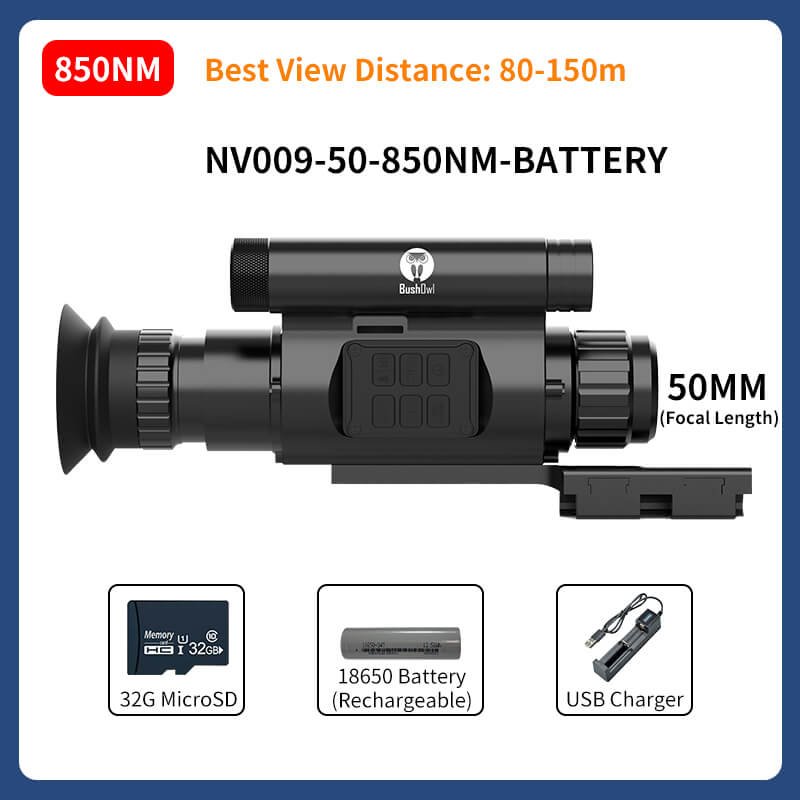

BushOwl 850nm Night Vision Scope NV009

Description

BushOwl 850nm Night Vision Scope NV009

1. ALL IN ONE NIGHT VISION MONOCULAR AND RIFLESCOPE: BushOwl NV009 is Night vision monocular and riflescope all in one integrated ultimate night vision, It’s ideal for close- and long-range hunting, surveillance, animal observation in daytime or in complete darkness night.
2. CLEAR VISION DAY AND NIGHT: BushOwl NV009 Digital Night vision scope features 2MP FHD 1080P CMOS sensor, 25mm large objective lens, 4x digital zoom, built-in 850nm laser IR illuminator with 3 IR levels adjustment enable to observe animals more than 3200ft/1000m at daytime, up to 980ft/300m in complete darkness. You can view full HD image directly on the large eyepiece.
3. TAKE PHOTO AND RECORDING VIDEO: 1920*1080P HD video size, record audio, take photo & record video of wildlife and stored on the MicroSD memory card (TF card). A must-have piece of hunting gear and equipment for night vision hunting.
4. POWERFUL RECOIL RESISTANCE AND DURABLE: The BushOwl NV009 Night vision camera is compact and lightweight, easy to carry. It is made of high-quality material with strong and durable design. Easily handle at least 6000j impact strength, rated for use with .308 caliber rifles.
5. EASY TO INSTALL: BushOwl NV009 Night Vision built-in crosshairs on screen and the crosshairs is adjustable to target your prey. Features 11-20mm adjustable rail mount, can be mounted on the Picatinny rail on your device. It can also just be a handheld monocular.

Fits Rifle with both 11mm and 20mm Picatinny Rail, or between 11mm and 20mm.

Installation:

Unscrew the battery compartment cap, install a 3.7V 18650 flat-top lithium battery with the positive pole facing in, and then tighten the battery compartment cap. For options that come with a battery, remove the white insulating sheet from the negative terminal of the battery and fully charge it before use.

Use an Allen wrench to tighten the corresponding screws. You can lock 2-4 screws according to the actual situation. Then fix the other end of the bracket on the Picatinny rail, this bracket is suitable for two sizes of Picatinny rails, 11mm and 21mm.

Calibration:
1). Focus adjustment:
Adjust the diopter lens by rotating the diopter lens tube until the letters on the screen is clear.
2). Objective lens adjustment:
After the diopter adjustment is completed, aim at the target, and rotate the objective lens focusing ring until the target is clear.
3). IR Brightness Adjustments:
In dark conditions, Long press the IR button to activate the night mode (black-white image), short press the IR button to turn on the infrared fill light in level IR1, short press again largen the IR power supply to IR2 and again to IR3, the higher the stronger. The infrared flashlight can diffuse and focus. When the outer flashlight head is stretched, it is focused, you get higher intensity IR light, and it can light longer range. When the outer flashlight head is extracted, it is diffused, you get lower intensity IR light, and it lights shorter range.



Operation Menu:
Long press the menu button to bring up the menu bar, press ▲/▼ to select the menu, and press OK to confirm.
1). Exposure: Adjust the exposure to high or low according to the difference in light intensity between day and night.
2). Contrast: Adjust the contrast of the image according to the difference in light intensity between day and night.
3). Language: Language settings, there are 10 language options.
4). Crosshair: Show/hide the crosshair, there are four crosshair shapes to choose from.
5). Crosshair Adjustment: can be adjusted up, down, left, and right.
6). Loop Recording: Set loop recording off or 3/5/10 minute loop recording.
7). Microphone: turn on/off the microphone.
8). Photo and Video: View or delete photos/videos.
9). Date Stamp: Show/hide date and time.
10). Date/Time: Date and time settings.
11). Screen Saver: Set automatic screen saver time – off/30 seconds/1 minute/3 minutes.
12). Screen Brightness: Set screen brightness – 5/15/25/50/75/100%.
13). Auto Power Off: Set the auto power off time – Never, 3/5/10 minutes.
14). Format: Format the memory card (delete all data on the memory card).
15). Default Settings: Restore factory settings – Yes/No.
16). Version: Displays the firmware version.

Specification:
Magnification: 4x digital zoom.
Power Supply: 18650 battery.
Infrared laser flashlight: 850nm.
Photo resolution: 1920*1080.
Video resolution: 1920*1080.
Video format: MOV.
Battery life: 2 hours with IR light On; 8 hours with IR light Off.
Voltage: 3.7V.
Size: 180*55*72mm.
Weight: 500g.
Infrared range: 300m.
TF card: basic configuration 32GB (Maximum support 128GB)
